The quality and accuracy of your maps are very important when you are filing a planning application, a development proposal or registering your property. Planning authorities, councils, and the Land Registry use properly formatted maps. These documents confirm ownership, evaluate boundaries, and assess proposals in line with local and national policies.
The map should meet the strict compliance criteria to avoid delays or rejection. By engaging a reliable supplier (such as the UK Map Centre), all requirements — including scale and orientation — are handled professionally. This guide identifies the key points that statutory authorities anticipate finding on compliant site and location plans.
Understanding the Purpose of Compliant Mapping
Submitted maps are used by official bodies to understand the scale of a development or property, not just to locate it. A compliant plan shows the land in question. It also highlights its relationship with the environment and the start and end of the development or ownership. Planners, conveyancers, and lawyers rely on this accuracy to make informed decisions. Even a single omission, such as a missing scale bar or a vague boundary line, can lead to significant setbacks in the registration and approval processes.
Defining Boundaries with Accuracy
Delimiting boundaries is the basis of any acceptable map filing. A red line should be used to show the full area of the site or piece of land, and any adjoining property or access routes need to be indicated in a different colour, usually blue, to show other land belonging to the applicant.
Boundaries are supposed to be consistent and verifiable with Ordnance Survey base mapping. Hand-scribbled or unclear lines often trigger resubmission requests. Sharp, smooth markings reflect professionalism and adherence to mapping standards.
Establishing the Correct Scale
The choice of scale determines a map’s interpretability. Location plans prepared by councils and the Land Registry are expected to adopt recognised Ordnance Survey standards —usually 1:1250 or 1:2500 in rural areas and 1:500 in detailed site drawings.
All documents should include a scale bar, and the map scale should be written in both words and numbers. The map becomes invalid if photocopies or digital enlargements alter the original scale. High-quality, licensed mapping data ensures the representation stays true to scale. It also maintains proportional relationships between features.
Showing Context and Surrounding Features
Planning authorities need more context than just the plot being developed or registered. A map should clearly show roads, neighbouring buildings, walkways, and natural features. A contextual outline helps authorities understand how the proposed works fit into their surroundings, whether urban, suburban, or rural.

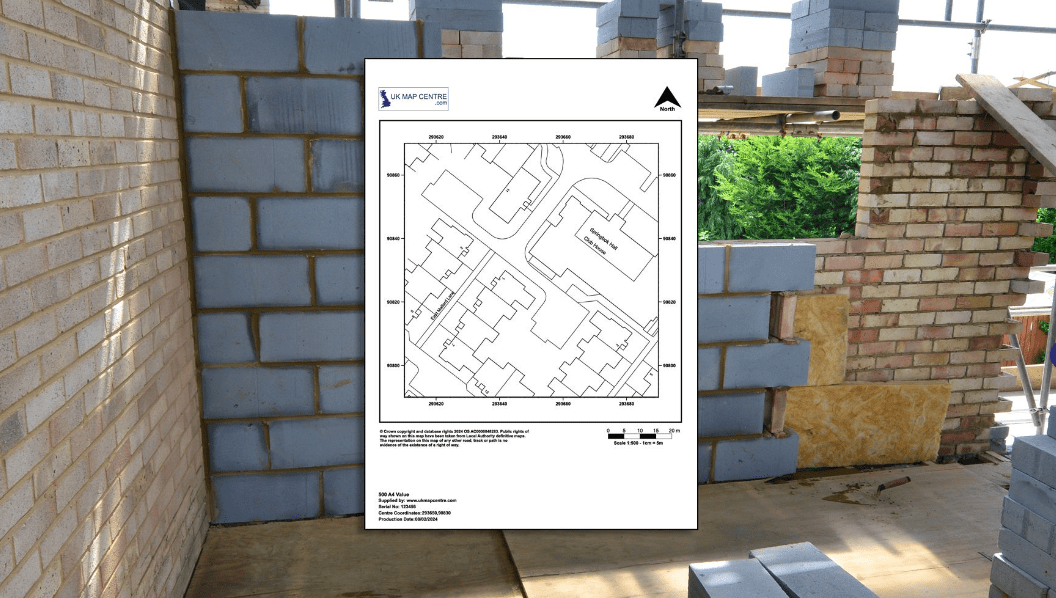

For location plans, this usually involves a map large enough to identify nearby roads and other landmarks. Site plans, conversely, focus on the development area in greater detail while still displaying access points and pertinent external boundaries. Adding north points, titles, and grid references increases interpretability and avoids orientation errors.
Ensuring Orientation and North Alignment
The north arrow is not optional; it is a necessity. Orientation puts the plan in real-world coordinates so that reviewers can cross-reference it with other mapping datasets. It is impossible to define direction or alignment without it.
The arrow must be facing true north and not magnetic north, and it should be conspicuous on the page. Certain councils require the north point to be at the top, but this varies depending on the submission format. No matter where it is placed, the orientation should be consistent across all related documents to avoid confusion.
Including Reference Details and Titles
Every plan requires identifying information. Titles must indicate the name of the property or project, its location, and the type of map, whether a site plan, block plan, or location plan. The name of the applicant, date created, and copyright ownership by Ordnance Survey or other licensed providers are also needed.
These details add to traceability and authenticity. Missing titles or incomplete references usually lead to rejection. This can happen even when all other technical specifications are accurate.
Using Licensed and Up-to-Date Mapping Data
Old and unlicensed mapping sources pose compliance risks. Councils and the Land Registry insist that plans are based on current, approved data. By utilising services that provide licensed and up-to-date maps and official Ordnance Survey datasets, it is possible to ensure that property boundaries, roads, and landmarks are up to date.
Licensed mapping also complies with copyright law, eliminating legal challenges over unauthorised reproduction. It is always important to verify the date of issue and the source of data before submission to ensure credibility and compliance.
Common Causes of Rejection
Delays in planning and registration are usually based on small but preventable problems. Common mistakes include omitting north arrows, missing scales, vague boundaries, or failing to draw plans to standard scales.
These pitfalls can be avoided by cross-checking your plan against submission guidelines before sending it to the council or Land Registry. An expert supplier will be able to review the plan to ensure all compliance boxes are checked before submitting it.
Submit Maps Right The First Time
Creating a map that complies involves more than merely drawing a line — it requires accuracy, uniformity, and compliance with statutory requirements. Correct scale and orientation, licensed mapping sources and contextual clarity are only some of the details that make a valid submission. Using licensed maps helps the council and Land Registry accept your submission. It saves time and makes approval hassle-free. When compliance is integrated into the mapping process from the start, it not only ensures faster approval but also builds trust and transparency in every stage of development
